  Arrowhead Talon Enforcer » Scorpion Specifications and Drawings    |
      |
|
 |
|
|
|
|||
| Scorpion |

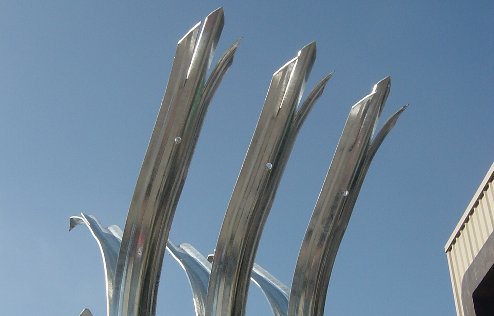

Has the curved top, triple point spear both inside and out which provides the ultimate in internal and external security. | ||
 |
|||
|
|||
Specs and Drawings |
CSI 3-Part Specifications PDF Word | ||
Vertical Picket |
2 3/4" W shape, 11-ga. thickness, Straight & curved | ||
Horizontal Rail |
Equal angle, 2" x 2", 3 1/4-ga. thickness | ||
Post |
Taper Flange Beam, 5" x 2 1/2", 5 1/2-ga. thickness | ||
Picket Top |
Triple Point Spear | ||
Installed Height |
9', 10' or higher upon request | ||
Panel Length |
9' | ||
Picket Spacing |
6" on center | ||
Drawings |
Made Only Wtih
W Shape Pale 9' Coming Soon 10' Coming Soon |
||
|
