  » Arrowhead Talon Enforcer Scorpion Specifications and Drawings    |
      |
|
 |
|
|
|
|||
| Arrowhead |

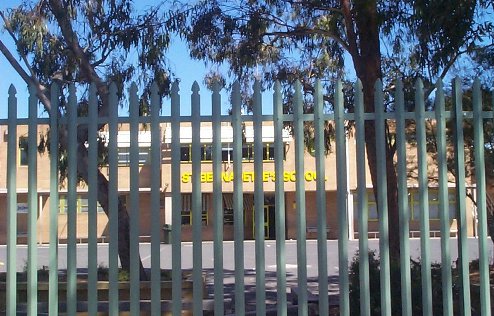

Uses a round top on the pales making it less intimidating, more aesthetically pleasing, and yet, retains all of the security features. | ||
 |
|||
|
|||
Specs and Drawings |
CSI 3-Part Specifications PDF Word | |||
Vertical Picket |
2 3/4" D or W shape, 11-ga. thickness, Straight & curved | |||
Horizontal Rail |
Equal angle, 2" x 2", 3 1/4-ga. thickness | |||
Post |
Taper Flange Beam, 4" x 1 3/4", 5 1/2-ga. thickness | |||
Picket Top |
Gothic Spear | |||
Installed Height |
6', 7', 8', 9' or 10' | |||
Panel Length |
9' | |||
Picket Spacing |
6" on center | |||
Drawings |
D Shape Pale 6' DWG PDF 7' DWG PDF 8' DWG PDF 9' DWG PDF 10' DWG PDF |
W Shape Pale 6' DWG PDF 7' DWG PDF 8' DWG PDF 9' DWG PDF 10' DWG PDF |
||
|
Note: To save specifications to your computer, right-click on a DWG, PDF or Word link and a menu will pop up. Left-click on "Save Target As...", choose the folder you want to save the file in and then click "Save". | |
||
