| Enforcer |

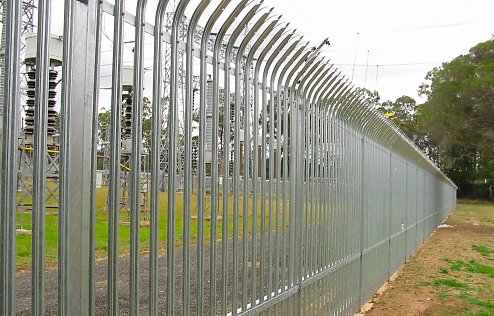

Has a curved top, triple point spear which provides an intimidating, difficult to climb, psychological barrier to protect and secure your property against intruders. | ||
 |
|||
|
|||
Specs and Drawings |
CSI 3-Part Specifications PDF Word | ||
Vertical Picket |
2 3/4" W shape, 11-ga. thickness, Straight & curved | ||
Horizontal Rail |
Equal angle, 2" x 2", 3 1/4-ga. thickness | ||
Post |
Taper Flange Beam, 5" x 2 1/2", 5 1/2-ga. thickness | ||
Picket Top |
Triple Point Spear | ||
Installed Height |
9', 10' or higher upon request | ||
Panel Length |
9' | ||
Picket Spacing |
6" on center | ||
Drawings |
Made Only Wtih
W Shape Pale 9' DWG PDF 10' DWG PDF |
||
|
Note: To save specifications to your computer, right-click on a DWG, PDF or Word link and a menu will pop up. Left-click on "Save Target As...", choose the folder you want to save the file in and then click "Save". | |
|
