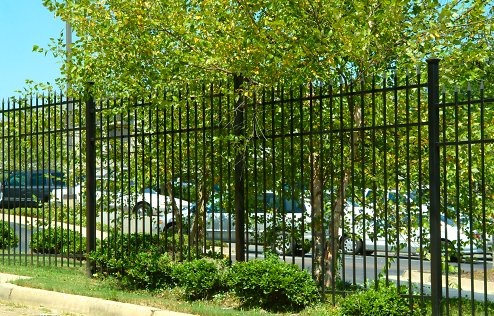

Premier Recommended for applications focusing on perimeter security requiring taller fencing. (3 rails)
Traditional

Specs and Drawings                            CSI 3-Part Specifications   PDF   Word
 Commercial
No.
Installed
Height
Picket
Spacing
Drawings
1
48"
6.0"
2
48"
4.5"
3
60"
6.0"
4
60"
4.5"
5
72"
6.0"
6
72"
4.5"
7
96"
6.0"
8
96"
4.5"
Vertical Pickets: 3/4 " pre-galvanized square steel tube, 18-ga.
Horizontal Rails: 1-1/4" pre-galvanized square steel tube, 14-ga.
Posts: 2-1/2" pre-galvanized square steel tube, 14-ga.
 Residential
No.
Installed
Height
Picket
Spacing
Drawings
9
48"
6.0"
10
48"
4.0"
11
60"
6.0"
12
60"
4.0"
13
72"
6.0"
14
72"
4.0"
Vertical Pickets: 5/8" pre-galvanized square steel tube, 18-ga.
Horizontal Rails: 1-1/4" pre-galvanized square steel tube, 14-ga.
Posts: 2" pre-galvanized square steel tube, 14-ga.
Note: To save drawings to your computer, right-click on a PDF or DWG link and a menu will pop up. Left-click on "Save Target As...", choose the folder you want to save the file in and then click "Save".
